Tracked Songs

Instead of prerecorded, offline-sequenced music files, the game uses a tracked music system that:

  • Uses smaller .ogg loop files.
  • Allows dynamic, indefinitely playing, track-based songs.
  • Allows scripts to mute or unmute tracks in response to level or player events.
  • Works with the time-of-day cycle.

Diez edits these song metadata files:

Tracked songs are stored in the Music/ folder. Each song has a .fezsong.json file and a same-named folder alongside it containing the song's .ogg loop files:

├── Zuins
│   ├── Zuins_01.ogg
│   ├── Zuins_02.ogg
│   ├── Zuins_03.ogg
│   └── Zuins_04.ogg
└── Zuins.fezsong.json

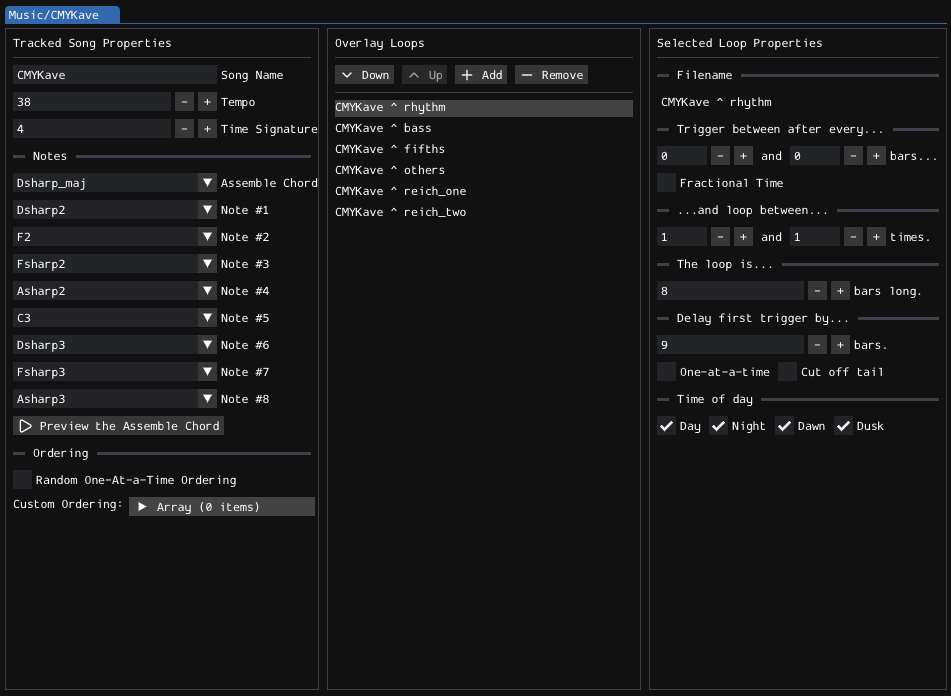

Layout

The editor is split into three sections:

  • Tracked Song Properties: Global song settings, shard notes, assemble chord, and ordering.
  • Overlay Loops: The list of loops used by the song.
  • Selected Loop Properties: Timing and playback settings for the selected loop.

Song Properties

The left section edits global song data.

  • Song Name: Unique song name.
  • Tempo: Tempo used for bar-based loop timing.
  • Time Signature /4: Number of beats per bar.
  • Assemble Chord: Golden or Anti cube collect chord used by this song.
  • Note #1-#8: Cube shards pickup notes.
  • Preview the Assemble Chord: Plays the selected assemble chord.
  • Random One-At-a-Time Ordering: Enables random ordering for one-at-a-time loops.
  • Custom Ordering: Custom loop ordering data.

You can preview an assemble chord by clicking the Play button. Diez loads the corresponding sound from the Sounds/Collects/SplitUpCube/ folder.

Overlay Loops

The middle section lists the song's overlay loops.

The toolbar has the following buttons, from left to right:

  • Down / Up: Reorders the selected loop.
  • Add: Chooses a loop file from the current song folder.
  • Remove: Deletes the selected loop from the metadata.

To edit a loop's properties, double-click it in the list.

Loop names use the tracked song naming convention:

SongName ^ LoopName

For example:

CMYKave ^ rhythm

Loop Properties

The right section edits the selected loop properties.

  • Filename: Referenced loop name.
  • Trigger From / Trigger To: Range of bars to wait before triggering the loop again.
  • Fractional Time: Allows non-integer trigger timing within the trigger range.
  • Loop Times From / Loop Times To: Range for how many times the loop repeats.
  • Duration: Loop length in bars.
  • Delay: Bars to wait before the first trigger.
  • One-at-a-time: Marks the loop for one-at-a-time playback behavior.
  • Cut off tail: Cuts the loop tail when stopping.
  • Day / Night / Dawn / Dusk: Time-of-day filters for when the loop can play.

Most loop timing is bar-based, so changes depend on the song tempo and time signature.

Example Song

The following example shows the metadata for Disasterpeace's Puzzle, also known as the puzzle-solving music. Its tracked song is named Cycle and uses the following global settings:

Property Value
Tempo 140 BPM
Time Signature 4/4
Assemble Chord E major
Shard Notes D2, E2, A2, B2, D3, E3, A3, B3
Random One-At-a-Time Ordering Disabled
Custom Ordering None

The following table summarizes the timing pattern used by the recurring parts. Individual loops may use different values:

Track Initial Delay Duration Interplay Delay
Main Arp None 8 bars [0, 16] bars
Counter Arp 4 bars 8 bars [0, 16] bars
Ostinato 8 bars 4 bars [0, 16] bars
Bass 8 bars 4 bars [0, 24] bars
Antecedent 16 bars 3 bars [0, 16] bars
Triplets 16 bars 9 bars [0, 16] bars
Consequent 20 bars 3 bars [0, 16] bars

The arrangement changes with the time of day:

Time of Day Loop Family Active Loops
Day Locrian 7
Dawn Dorian 7
Dusk Aeolian 6
Night Aeolian 3

Most loops play once per trigger. The bass loops may repeat once or twice and use a trigger range of 0 to 24 bars. The nighttime-only loop uses a trigger range of 0 to 8 bars, while most other loops use a range of 0 to 16 bars. All Cycle loops disable fractional timing, one-at-a-time playback, and tail cutoff.

The Cycle.fezsong.json song uses the following loops:

├── Cycle
│   ├── Aeolian_Antecedent_3Bars
│   ├── Aeolian_Bass_4Bars
│   ├── Aeolian_Consequent_3Bars
│   ├── Aeolian_CounterArp_8Bars
│   ├── Aeolian_MainArp_8Bars
│   ├── Aeolian_Nighttime_13Bars
│   ├── Aeolian_Triplets_9Bars
│   ├── Dorian_Antecedent_3bars
│   ├── Dorian_Bass_4bars
│   ├── Dorian_Consequent_3bars
│   ├── Dorian_CounterArp_8bars
│   ├── Dorian_MainArp_8bars
│   ├── Dorian_Ostinato_2bars
│   ├── Dorian_Triplets_9bars
│   ├── Locrian_Antecedent_3bars
│   ├── Locrian_Bass_4bars
│   ├── Locrian_Consequent_3bars
│   ├── Locrian_CounterArp_8bars
│   ├── Locrian_MainArp_8bars
│   ├── Locrian_Ostinato_4bars
│   └── Locrian_Triplets_9bars

Here is the song during daytime:

Here is the song during nighttime:

The nighttime arrangement is less dense and has a distinctly different sound.

Reference

A more detailed description of the properties is available in the FEZSONG format reference.

For information about the song scripting API with Sound static entity, see the Scripting Reference.
